Kawanish N1K1-Ja Shiden & Shiden-Kai, George

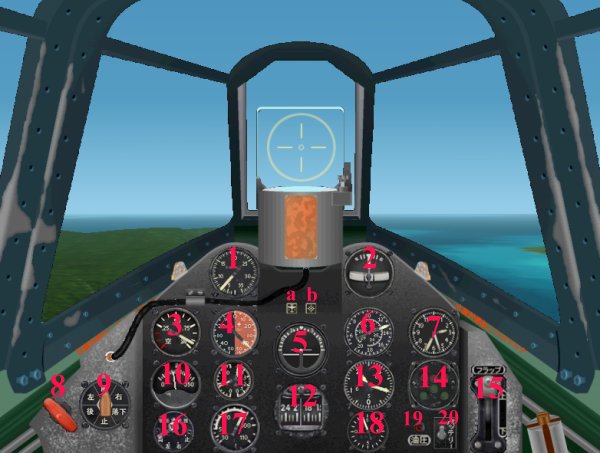

1. Tachometer 2. Turn and Slip Indicator
3. Fuel Tank Level Indicator 4. Manifold Pressure Boost
5. Attitude Indicator 6. Airspeed Indicator
7. Clock 8. Engine Start Switch
9. Fuel tank selector 10. Cylinder Head Temperature
11. Oil Pressure(L) and Fuel Pressure(R) 12. Magnetic Compass
13. Altimeter (metric) 14. Landing Gear Position Lights
15. Flap Position Indicator 16. Engine Ignition and Magnetos Switch
17. Oil Temperature Indicator 18. Vertical Speed Indicator
19. Hydraulic Pressure Warning Light 20. Master Switch

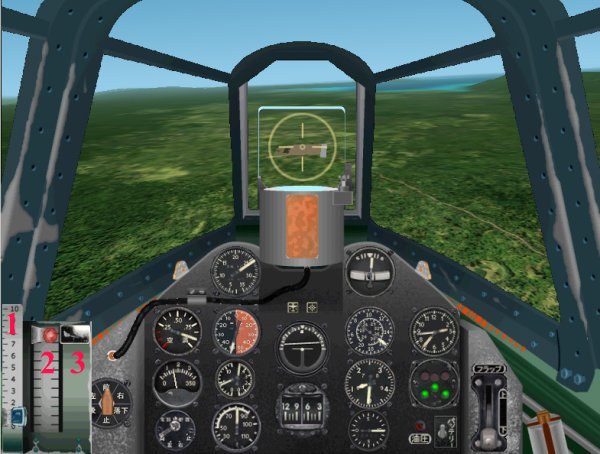

a. Toggle to ON/OFF the Throttle Quadrant b. Toggle to ON/OFF the Flight Map
|
